Description

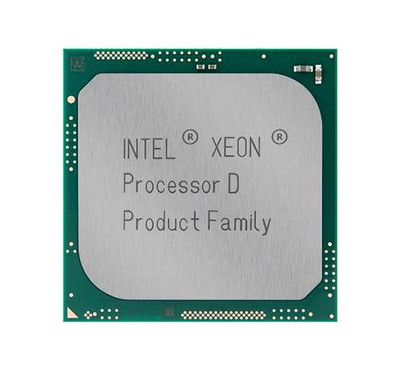

SR2LZ - Intel Xeon D-1581 16-Core 1.80GHz 24MB L3 Cache Socket BGA1667 Processor
Details
Brand
Intel
Weight
2.00 LBS
Processor Type
Server
Series
Xeon D Processor
Core Model Type/ProcNo.
D-1581
Processor Code Name
Broadwell
Core Stepping
Y0
Manufacturing Technology
14 nm
# of Cores
16
# of Threads
32
Clock Speed
1.80 GHz
L3 Cache Size
24 MB
Thermal Power
65 Watts
Max Memory Size
128 GB
Memory Types
DDR4-2133
Maximum Memory Speed
2133 MHz
Memory Channels
2
ECC Memory Supported
Yes
CPU Socket Type
BGA1667
Max CPU Configuration
1
Package Size
37.5 mm x 37.5 mm
Embedded Options Available
No
Scalability
1S
PCI Express
3.0
PCI Express Configurations
x16, x4, x8
Max # of PCI Express Lanes
32
# of USB Ports
8
USB Revision
2.0
Advanced Technologies
Enhanced Intel SpeedStep Technology, Idle States, Instruction Set 64-bit, Intel 64, Intel Hyper-Threading Technology, Intel Transactional Synchronization Extensions, Intel Turbo Boost Technology 2.0, Intel Virtualization Technology (VT-x), Intel Virt
Instruction Set Extensions
Intel AVX2
Security & Reliability
Execute Disable Bit, Intel AES New Instructions, Intel OS Guard, Intel Trusted Execution Technology
