Description

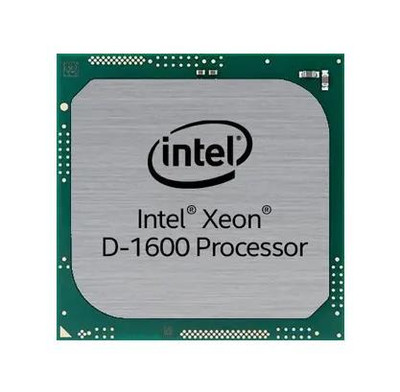

SRG05 - Intel Xeon D-1602 Dual-Core 2.50GHz 3MB L3 Cache Socket FCBGA1667 Processor
Details
Brand
Intel
Weight
2.00 LBS
Processor Type
Server
Series
Xeon D Processor
Core Model Type/ProcNo.
D-1602
Processor Code Name
Hewitt Lake
Manufacturing Technology
14 nm
# of Cores
2
# of Threads
4
Clock Speed
2.50 GHz
Max Turbo Frequency
3.20 GHz
L3 Cache Size
3 MB
# of QPI Links
0
# of UPI Links
0
Intel Turbo Boost Max Technology 3.0 Frequency
3.20 GHz
Thermal Power
27 Watts
Max Memory Size
128 GB
Memory Types
DDR4-2133
Maximum Memory Speed
2133 MHz
Memory Channels
2
ECC Memory Supported
Yes
CPU Socket Type
BGA1667
Max CPU Configuration
1
TJUNCTION
105 °C
Package Size
37.5mm x 37.5mm
TCASE
84 °C
Scalability
1S
PCI Express
3.0
PCI Express Configurations
x16, x4, x8
Max # of PCI Express Lanes
32
# of USB Ports
8
USB Revision
2.0
Max # of SATA 6.0 Gb/s Ports
6
Advanced Technologies
Enhanced Intel SpeedStep Technology, Idle States, Instruction Set 64-bit, Intel 64, Intel Transactional Synchronization Extensions, Intel Turbo Boost Technology 2.0, Intel Virtualization Technology (VT-x), Intel Virtualization Technology for Directed
Instruction Set Extensions
Intel AVX2
Security & Reliability
Execute Disable Bit, Intel AES New Instructions, Intel Boot Guard, Intel OS Guard, Intel Software Guard Extensions (Intel SGX), Secure Key
Product Condition
OEM
Standard Warranty
21 days
