Description

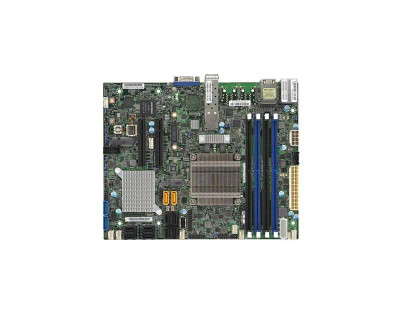

X10SDV-4C-7TP4F - SuperMicro Socket FCBGA-1667 System on Chip Chipset Flex-ATX System Board Motherboard Supports Xeon D-1518 DDR4 4x DIMM
Details
Brand
SuperMicro
Weight
8.00 LBS
Ethernet Standard
Gigabit Ethernet
Memory Technology
DDR4 SDRAM
RAM Genre
RDIMM,UDIMM
Socket Type
Socket BGA-1667
Quantity of Processor Supported
1
Supported Processor
Xeon D
Built-in Processor Vendor
Intel
Built-in Processor Type
Xeon
Built-in Processor Model
D-1581
Built-in Processor Speed
1.8 GHz
Built-in Processor Core
Hexadeca-core (16 Core)
Quantity of Memory Slots
4
Maximum Memory
128 GB
Controller Type
Serial ATA/600
RSTe (Specefic for Intel)
Yes
Raid Supported
Yes
Raid Levels
0,1,5,10
Onboard Video
On-board Video Chipset
Graphics Controller Vendor
ASPEED
Graphics Controller Model
AST2400 BMC
Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+)
5
VGA Port
Yes
Quantity of Expansion Slots
2
Quantity of USB Ports
7
Ethernet Port (RJ-45)
Yes
Quantity of PCI Express Slots
3
Quantity of PCI Express x1 Slots
1
Quantity of PCI Express x8 Slots
2
Quantity of SATA Interfaces
4
Quantity of M.2 Interfaces
1
Quantity of Onboard USB Ports
7
Quantity of Onboard USB 3.0 Ports
2
Quantity of USB 2.0 Ports
5
Height
9 Inches
Width
7.25 Inches
Form Factor
Flex ATX
Compatibility
SC504-203BSC505-203BSC514-505SSG-5018D4-AR12L
Compliance Standards
RoHS
Assembly Required
Yes
Eco Friendly
Yes
