Description

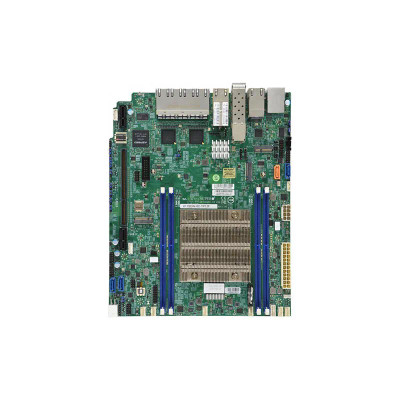

X11SDW-8C-TP13F - SuperMicro Socket FCBGA-2518 System on Chip Chipset Proprietary WIO System Board Motherboard Supports Xeon D-2146NT DDR4 4x DIMM
Details
Brand
SuperMicro
Weight
8.00 LBS
Ethernet Standard
10 Gigabit Ethernet
Memory Technology
DDR4 SDRAM
RAM Genre
RDIMM,LRDIMM
Socket Type
Socket BGA-2518
Quantity of Processor Supported
1
Supported Processor
Xeon D
Built-in Processor Vendor
Intel
Built-in Processor Type
Xeon
Built-in Processor Model
D-2146NT
Built-in Processor Speed
2.3 GHz
Built-in Processor Core
Octa-core (8 Core)
Quantity of Memory Slots
4
Maximum Memory
512 GB
Controller Type
Serial ATA/600
Raid Supported
Yes
Raid Levels
0,1,5,10
Onboard Video
On-board Video Chipset
Graphics Controller Vendor
ASPEED
Graphics Controller Model
AST2500 BMC
Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+)
12
VGA Port
Yes
Quantity of Expansion Slots
4
Quantity of USB Ports
6
Ethernet Port (RJ-45)
Yes
Quantity of PCI Express Slots
1
Quantity of PCI Express x32 Slots
1
Quantity of SATA Interfaces
4
Quantity of M.2 Interfaces
3
Quantity of Onboard USB Ports
6
Quantity of Onboard USB 3.1 Ports
2
Quantity of USB 2.0 Ports
4
Height
8 Inches
Width
9.6 Inches
Form Factor
Proprietary Form Factor
Compatibility
SYS-1019D-FHN13TPSYS-E403-9D-8CN-FN13TPSC513BTQC-350WB
Compliance Standards
RoHS
Assembly Required
Yes
Eco Friendly
Yes
