Description

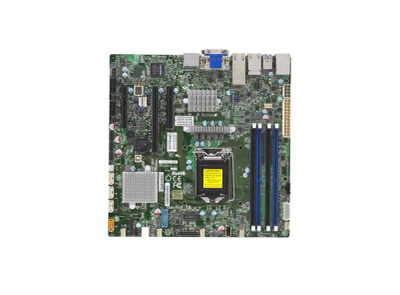

X11SSZ-TLN4F - SuperMicro Socket LGA1151 Intel C236 Chipset Micro-ATX System Board Motherboard Supports Celeron/Pentium/Core 13/15/17/Xeon E3-1200 v5 Series DDR4 4x DIMM
Details
Brand
SuperMicro
Weight
8.00 LBS
Ethernet Standard
Gigabit Ethernet
Memory Technology
DDR4 SDRAM
RAM Genre
UDIMM
Socket Type
Socket H4 LGA-1151
Chipset Vendor
Intel
Chipset Model
C236
Quantity of Processor Supported
1
Supported Processor
Core i7
Built-in Processor Vendor
Intel
Built-in Processor Type
Core i7
Built-in Processor Model
i7-7600U
Built-in Processor Speed
2.8 GHz
Built-in Processor Core
Dual-core (2 Core)
Quantity of Memory Slots
4
Maximum Memory
64 GB
Controller Type
Serial ATA/600
Raid Supported
Yes
Raid Levels
0,1,5,10
Onboard Video
On-board Video Chipset
Graphics Controller Vendor
ASPEED
Graphics Controller Model
AST2400 BMC
Audio Channels
7.1
VGA Port
Yes
Display Port
Yes
DVI Port
Yes
Quantity of USB Ports
13
Quantity of PCI Express Slots
3
Quantity of PCI Express x4 Slots
2
Quantity of PCI Express x16 Slots
1
Quantity of SATA Interfaces
4
Quantity of Onboard USB Ports
13
Quantity of Onboard USB 3.0 Ports
4
Quantity of USB 2.0 Ports
9
Height
9.6 Inches
Width
9.6 Inches
Form Factor
Micro ATX
Compatibility
SC813MFTQC-350CBSC813MTQ-350CBSC825MTQ-R700LPBSC731i-300BSC842i-500B
Compliance Standards
RoHS
Assembly Required
Yes
Eco Friendly
Yes
