Description

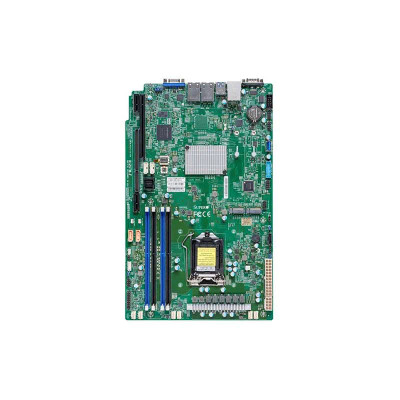

X12STW-F - SuperMicro Socket LGA1200 Intel C256 Chipset Proprietary WIO System Board Motherboard Supports Xeon E-2300 Series DDR4 4x DIMM
Details
Brand
SuperMicro
Weight
8.00 LBS
Ethernet Standard
Gigabit Ethernet
Memory Technology
DDR4 SDRAM
RAM Genre
UDIMM
Socket Type
Socket LGA-1200
Chipset Vendor
Intel
Chipset Model
C256
Quantity of Processor Supported
1
Supported Processor
Xeon E
Built-in Processor Vendor
Intel
Built-in Processor Type
Xeon
Built-in Processor Model
E-2300
Built-in Processor Speed
4 GHz
Built-in Processor Core
Octa-core (8 Core)
Quantity of Memory Slots
4
Maximum Memory
128 GB
Controller Type
Serial ATA/600
Raid Supported
Yes
Raid Levels
0,1,5,10
Onboard Video
On-board Video Chipset
Graphics Controller Vendor
ASPEED
Graphics Controller Model
AST2600 BMC
Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+)
2
VGA Port
Yes
Quantity of Expansion Slots
4
Quantity of USB Ports
11
Ethernet Port (RJ-45)
Yes
Quantity of PCI Express Slots
2
Quantity of PCI Express x4 Slots
1
Quantity of PCI Express x16 Slots
1
Quantity of SATA Interfaces
8
Quantity of M.2 Interfaces
2
Quantity of Onboard USB Ports
11
Quantity of Onboard USB 3.0 Ports
5
Quantity of USB 2.0 Ports
6
Height
8 Inches
Width
13 Inches
Form Factor
Proprietary Form Factor
Compatibility
SCLA15TQC-563WSC815TQC4-R504WB3
Compliance Standards
RoHS
Assembly Required
Yes
Eco Friendly
Yes
