Description

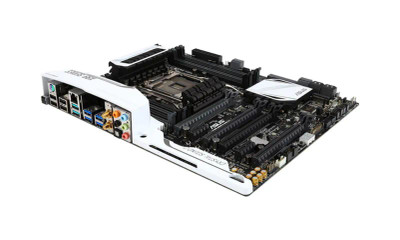

X99-S - Asus Socket LGA2011-3 Intel X99 Chipset ATX System Board Motherboard Supports Core i7 DDR4 8x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 2011-3
Supported CPU(s)
Intel Core i7 Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel X99
Number of Memory Slot(s)
8
Supported Memory Standard(s)
PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400), PC4-21333 (DDR4-2666), PC4-25600 (DDR4-3200)
Maximum Installed Memory
64 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 3.0 x1, PCI-E 3.0 x16
Expansion Slots Details
40-Lane CPU-, 5 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8, x8/x8/x16/x8, x8/x8/x8/x8/x8 mode) *1, 1 x PCIe 2.0 x4 (max at x4 mode) *2, 28-Lane CPU-, 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x8/x8/x8), 2 x PCIe 2.0 x16 (x1 mode), 1 x PCIe 2.0 x4 (max at
Storage Controller
SATA 6.0 Gbps
Storage Controller Details
New Intel® Core¢ i7 Processors :, 1 x M.2 Socket 3, with vertical M Key design, type 2242/2260/2280 storage devices support (Support PCIE SSD only), Intel® X99 chipset :, 1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports, 8 x SATA 6Gb
Audio Controller
Realtek ALC1150
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, RJ-45, S/PDIF, USB 2.0, USB 3.1
Connectors/Ports Details
1 x LAN (RJ45) port(s), 8 x USB 3.1 Gen 1 (blue), 2 x USB 2.0 , 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS Flashback Button(s)
