Description

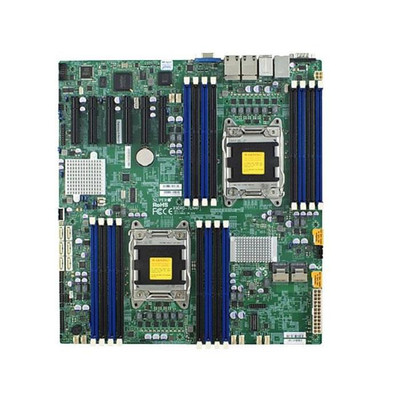

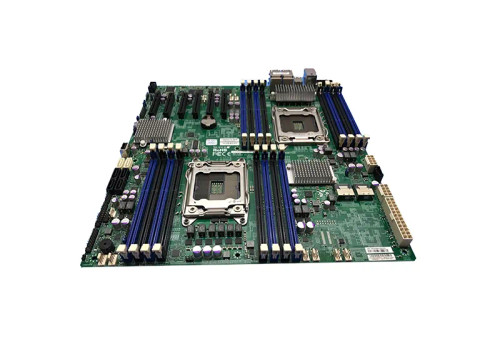

X9DRD-7LN4F-SSG - SuperMicro Socket LGA2011 Intel C602J Chipset EATX System Board Motherboard Supports 2x E5-2600/E5-2600 v2 Series DDR3 16x DIMM
Details
Brand
SuperMicro
Weight
8.00 LBS
Form Factor
EATX
CPU Socket Type
LGA 2011
Supported CPU(s)
Intel Xeon Processor
Supported CPU Technologies
64-bit, AES New Instructions, Demand Based Switching, Enhanced Intel Speedstep Technology, Execute Disable Bit, Idle States, Intel 64 Architecture, Intel Trusted Execution Technology, Thermal Monitoring Technologies
Chipset
Intel C602J
Number of Memory Slot(s)
16
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-6400 (DDR3-800), PC3-8500 (DDR3-1066)
Maximum Installed Memory
1TB
Expansion Slots
PCI Express x8
Expansion Slots Details
6 (x8) PCI-E 3.0 slots
Storage Controller
Serial-ATA 3.0 Gbps, Serial-ATA 6.0 Gbps
Storage Controller Details
2 SATA 3.0 ports (6Gb/s), 4 SATA 2.0 ports (3Gb/s), 8 SAS2 ports (6Gb/s)
On-Board Video Controller
Matrox G200eW
Network
Gigabit Ethernet
Connectors/Ports
RJ-45 (Ethernet), USB 2.0
Connectors/Ports Details
4 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port, 9 USB 2.0 ports total, (4 rear + 4 via header + 1 Type A), 1 VGA port, 1 Fast UART 16550 port / 1 Header, 1 DOM (Disk on Module) power connector, 1 TPM Header
