Description

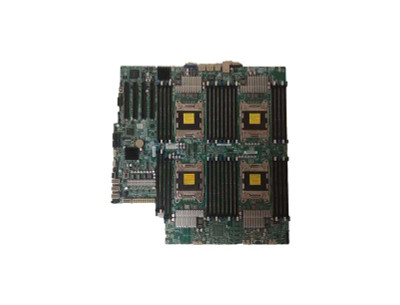

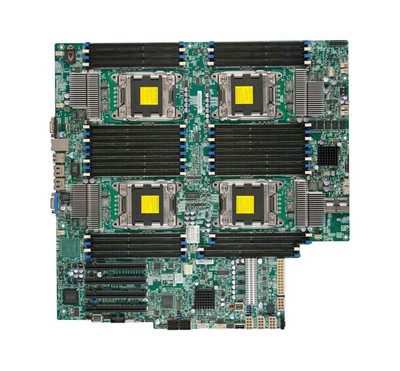

X9QRi-F+ - SuperMicro Socket LGA2011 Intel C602 Chipset Proprietary System Board Motherboard Supports Xeon E5-4600 v2/E5-4600 Series DDR3 32x DIMM
Details
Brand
SuperMicro
Weight
8.00 LBS
CPU Socket Type
LGA 2011
Supported CPU(s)
Intel Xeon Processor
Supported CPU Technologies
64-bit, AES New Instructions, Enhanced Intel Speedstep Technology, Execute Disable Bit, Hyper-Threading Technology, Idle States, Intel 64 Architecture, Intel Trusted Execution Technology, Intel Turbo Boost Technology, Intel Virtualization Technology,
Chipset
Intel C602
Number of Memory Slot(s)
32
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-6400 (DDR3-800), PC3-8500 (DDR3-1066)
Maximum Installed Memory
1TB
Expansion Slots
PCI Express x16, PCI Express x8
Expansion Slots Details
2x PCI-E 3.0 x16 slots, 2x PCI-E 3.0 x8 slots
Storage Controller
Serial-ATA 3.0 Gbps, Serial-ATA 6.0 Gbps
Storage Controller Details
2x SATA 3.0 ports (6Gbps), 4x SATA 2.0 ports (3Gbps)
On-Board Video Controller
Nuvoton W83527HG
Network
Gigabit Ethernet
Connectors/Ports
RJ-45 (Ethernet), USB 2.0
Connectors/Ports Details
2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, 8x USB 2.0 ports total, (4 rear + 3 front + 1 Type A), 1x VGA port, 2x Fast UART 16550 ports: 1 rear and 1 header, 1 DOM (Disk on Module) power connector
