Description

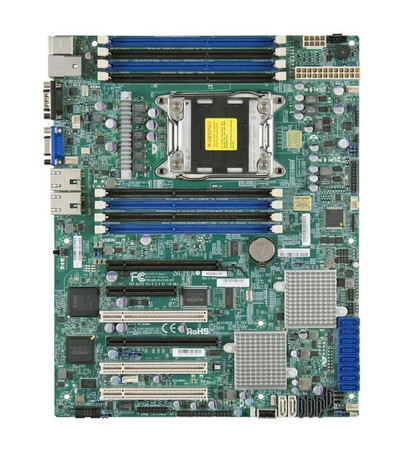

X9SRH-7TF - SuperMicro Socket LGA2011 Intel C602J Chipset ATX System Board Motherboard Supports Xeon E5-2600/E5-1600 Series DDR3 8x DIMM
Details
Brand
SuperMicro
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 2011
Supported CPU(s)
Intel Xeon Processor
Supported CPU Technologies
64-bit, AES New Instructions, Demand Based Switching, Enhanced Intel Speedstep Technology, Execute Disable Bit, Idle States, Intel 64 Architecture, Intel Trusted Execution Technology, Intel Virtualization Technology, Thermal Monitoring Technologies
Chipset
Intel C602J
Number of Memory Slot(s)
8
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-8500 (DDR3-1066)
Maximum Installed Memory
512GB
Expansion Slots
PCI Express x16, PCI Express x4, PCI Express x8
Expansion Slots Details
1x PCI-E 3.0 x16 slot, 1x PCI-E 3.0 x8 (in x16) slot, 1x PCI-E 2.0 x4 (in x8) slot
Storage Controller
Serial-ATA 3.0 Gbps
Storage Controller Details
2 SATA 3.0 ports (6Gb/s), 4 SATA 2.0 ports (3Gb/s), 8 SAS2 ports (6Gb/s)
On-Board Video Controller
Matrox G200eW
Network
Gigabit Ethernet
Connectors/Ports
RJ-45 (Ethernet), USB 2.0
Connectors/Ports Details
2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port, 9 USB 2.0 ports total (2 rear + 6 via header + 1 Type A), 1 VGA port, 2 PS/2 Keyboard/Mouse ports, 2 serial ports (1 rear, 1 header), 1 DOM (Disk on Module) power connector, 1 TPM Hea
