Description

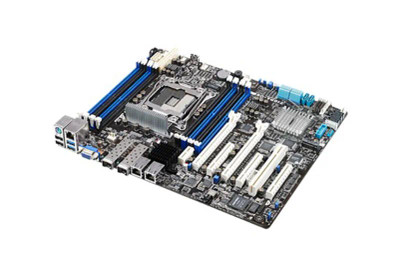

90SB04U0-M0UAY0 - Asus Z10PA-U8/10G-2S Socket LGA2011-3 Intel C612 Chipset ATX System Board Motherboard Supports Xeon E5-1600 v3/E5-2600 v3 DDR4 8x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 2011-3
Supported CPU(s)
Intel Core i7 Processor, Intel Xeon Processor
Chipset
Intel C612
Number of Memory Slot(s)
8
Number of Memory Channel(s)
8
Supported Memory Standard(s)
PC4-12800 (DDR4-1600), PC4-14900 (DDR4-1866), PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400)
Maximum Installed Memory
512GB
Expansion Slots
PCI-E x16, PCI-E x8
Expansion Slots Details
PCI-E x8 (Gen2 X4 Link), PCI 32bit/33MHz, PCI-E x8 (Gen3 X8 Link), PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied, PCI-E x8 (Gen3 X8 Link), PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied, MIO Slot for
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Storage Controller Details
Intel C612, 10 x SATA3 6Gb/s ports, 9 x SATA3 6Gb/s ports + 1 x M.2 connector *2, , SAS Controller, ASUS PIKE II 3008 8-port SAS HBA card(Optional), ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
On-Board Video Controller
ASPEED AST2400
Shared Video Memory
32 MB
Network
Gigabit Ethernet
Connectors/Ports
24-pin ATX Power Connector, 8-pin 12V Power Connector, Chassis Fan Connector, PS/2, PS/2 Keyboard, PS/2 Mouse, Serial, TPM Header, USB 2.0, USB 3.0
Connectors/Ports Details
On Board I/O, 1 x TPM header, 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector), 1 x Management Connector , Onboard socket for optional management card, 1 x USB 3.0 pin header , Up to 2 Devices, 1 x USB 2.0 pin head
Warranty Information
8
