Description

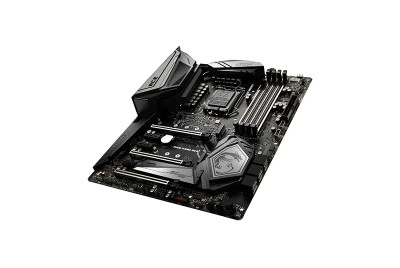

Z390ACE - MSI MEG Z390 ACE LGA1151/ Intel Z390/ DDR4/ SATA3 / USB3.1/ 3-Way CrossFireX & 2-Way SLI/ M.2/ WiFi/ A&GbE/ ATX Motherboard
Details
Brand
MSI
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Pentium Gold, Celeron, Core i3, Core i5, Core i7, Core i9
Number of Memory Slots
4
Memory Form Factor
DIMM, UDIMM
Maximum Memory
64 GB
Memory Speed Supported
4.40 GHz (O.C.), 4.30 GHz (O.C.), 4.27 GHz (O.C.), 4.20 GHz (O.C.), 4.13 GHz (O.C.), 4 GHz (O.C.), 3.87 GHz (O.C.), 3.73 GHz (O.C.), 3.60 GHz (O.C.), 3.47 GHz (O.C.), 3.40 GHz (O.C.), 3.33 GHz (O.C.), 3.30 GHz (O.C.), 3.20 GHz (O.C.), 3 GHz (O.C.), 2
Memory Technology
DDR4 SDRAM
Intel Optane Memory Ready
Yes
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Onboard Video
No
Audio Channels
7.1
Bluetooth
Yes
Gigabit Ethernet
Yes
Wireless LAN
Yes
Number of Total Expansion Slots
6
Total Number of PCI Express Slots
6
Number of PCI Express x1 Slots
3
Number of PCI Express x16 Slots
3
Total Number of USB Ports
10
Number of USB 3.1 Ports
6
S/PDIF
Yes
Number of SATA Interfaces
6
Number of M.2 Interfaces
3
Total Number of Onboard USB Ports
10
Number of Onboard USB 3.1 Ports
6
Form Factor
ATX
Width
12
Depth
9.6
Country of Origin
China
