Description

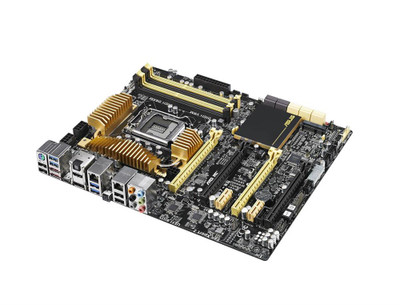

Z87-WS-A1 - Asus Z87-WS Socket LGA 1150 Intel Z87 Chipset 4th Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon E3-1200 v3 Processors
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1150
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor, Intel Xeon Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Z87
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-19200 (DDR3-2400), PC3-21300 (DDR3-2666)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
4 x PCIe 3.0/2.0 x16 (dual x16 or x16/x8/x8 or quad x8), 2 x PCIe 2.0 x1
Storage Controller
SATA 6.0 Gbps
Audio Controller
Realtek ALC1150
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, HDMI, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 2 x eSATA 6Gb/s, 2 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1, 4 x USB 2.0 (one port can be switched to USB BIOS Flashback®), 1 x Optical S/PDIF out, 6 x Audio jack(s), 1
