Description

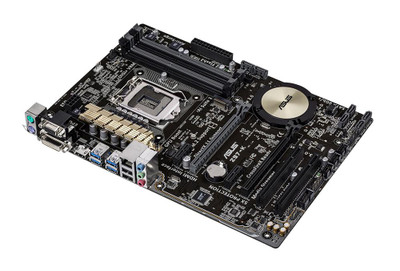

Z97-K - Asus Socket LGA1150 Intel Z97 Chipset ATX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1150
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Z97
Number of Memory Slot(s)
4
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-16000 (DDR3-2000)
Maximum Installed Memory
32 GB
Expansion Slots
PCI Express x1, PCI Express x16
Expansion Slots Details
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) , 1 x PCIe 2.0 x16 (max at x4 mode, black) *1, 2 x PCIe 2.0 x1, 2 x PCI
Storage Controller
Serial-ATA 6.0 Gbps
Storage Controller Details
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*2, 6 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 5, 10, Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Tec
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, D-Sub, DVI-D, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.0
Connectors/Ports Details
1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1 (blue), 2 x USB 2.0 , 3 x Audio jack(s)
