Description

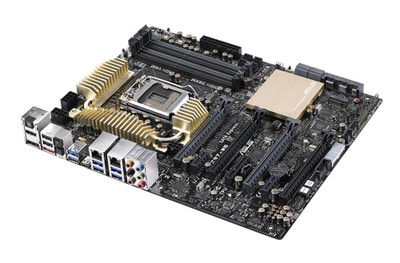

Z97-WS - Asus Socket LGA1150 Intel Z97 Express Chipset ATX System Board Motherboard Supports Celeron/ Core i3/ Core i5/ Core i7/ Pentium/ Xeon Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
Core i7, Core i5, Core i3, Pentium, Celeron, Xeon
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory
32 GB
Memory Speed Supported
3.20 GHz (O.C.), 3.10 GHz (O.C.), 3 GHz (O.C.), 2.93 GHz (O.C.), 2.80 GHz (O.C.), 2.67 GHz (O.C.), 2.60 GHz (O.C.), 2.50 GHz (O.C.), 2.40 GHz (O.C.), 2.20 GHz (O.C.), 2.13 GHz (O.C.), 2 GHz (O.C.), 1.87 GHz (O.C.), 1.80 GHz (O.C.), 1.60 GHz, 1.33 GHz
Memory Technology
DDR3 SDRAM
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 1+0
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
7
Total Number of PCI Express Slots
7
Number of PCI Express x1 Slots
2
Number of PCI Express x4 Slots
1
Number of PCI Express x16 Slots
4
Number of eSATA Ports
1
Total Number of USB Ports
8
Number of USB 3.0 Ports
6
S/PDIF
Yes
HDMI
Yes
DisplayPort
Yes
Number of SATA Interfaces
4
Number of M.2 Interfaces
1
Number of SATA Express Interfaces
2
Total Number of Onboard USB Ports
8
Number of Onboard USB 3.0 Ports
4
Onboard S/PDIF Header
Yes
Form Factor
ATX
Width
12
Depth
9.6
Environmentally Friendly
Yes
Environmental Certification
RoHS, WEEE
