Description

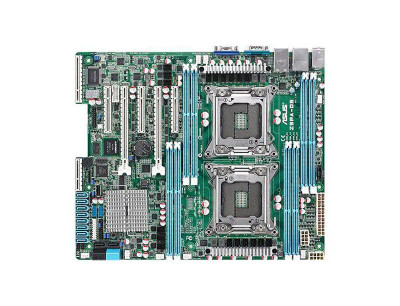

Z9PA-D8 - Asus Socket LGA2011 Intel C602 Chipset ATX System Board Motherboard Supports 2x Xeon E5-2600/E5-2600 v2 Series DDR3 8x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 2011
Supported CPU(s)
Intel Xeon Processor
Supported CPU Technologies
64-bit, Hyper-Threading Technology, Intel Turbo Boost Technology, Intel Virtualization Technology
Chipset
Intel C602
Number of Memory Slot(s)
8
Number of Memory Channel(s)
4
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066)
Maximum Installed Memory
256GB RDIMM GB
Expansion Slots
PCI-E x16, PCI-E x8
Expansion Slots Details
PCI-E x8 (Gen2 X4 Link), PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied, PCI-E x8 (Gen3 X8 Link), PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied, PCI-E x8 (Gen3 X8 Link), MIO supported, PIKE Slot for
Storage Controller
SAS 6.0 Gbps, SATA 3.0 Gbps, SATA 6.0 Gbps
Storage Controller Details
SATA Controller, 4 x SATA2 3Gb/s ports, 2 x SATA3 6Gb/s ports, , SAS Controller, ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional), ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional), ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional), ASUS
On-Board Video Controller
ASPEED AST2300
Shared Video Memory
16 MB
Network
MGMT Port
Connectors/Ports
24-pin ATX Power Connector, 8-pin 12V Power Connector, CPU Fan Connector, PS/2, PS/2 Keyboard, PS/2 Mouse, RJ-45, Serial, USB, USB 2.0, USB 3.1
Connectors/Ports Details
On Board I/O Connectors, 1 x TPM header, 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)*3, 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)*4, 1 x USB connector
