Description

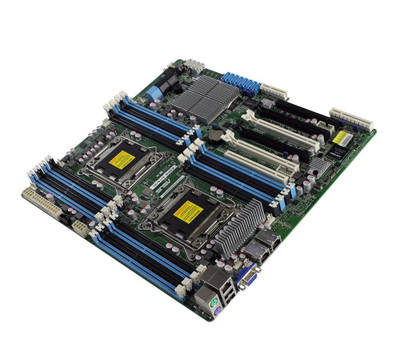

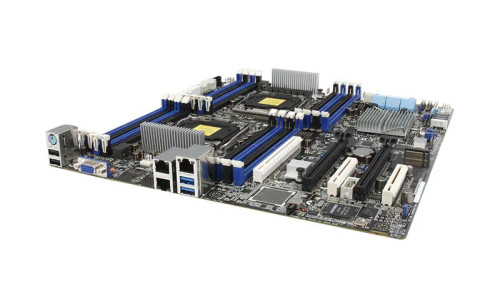

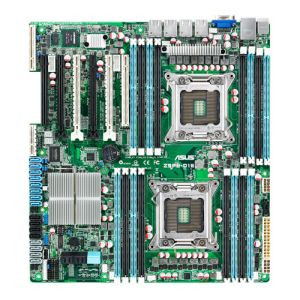

Z9PE-D16/2LASMB6-IK - Asus Z9PE-D16/2l ASMB6-IKVM Dual Socket LGA 2011 Intel C602-A Chipset Motherboard
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
SSI EEB
CPU Socket Type
LGA 2011
Supported CPU(s)
Intel Xeon Processor
Supported CPU Technologies
64-bit, AES New Instructions, Demand Based Switching, Enhanced Intel Speedstep Technology, Execute Disable Bit, Hyper-Threading Technology, Idle States, Intel 64 Architecture, Intel Trusted Execution Technology, Intel Turbo Boost Technology, Intel Vi
Chipset
Intel C602
Number of Memory Slot(s)
16
Number of Memory Channel(s)
8
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32GB, 16GB, 8GB, 4GB, 2GB RDIMM, 32GB, 16GB, 8GB LRDIMM, 8GB, 4GB, 2GB UDIMM
Expansion Slots
PCI-E x16
Expansion Slots Details
PCI-E x16 (Gen3 X8 Link), PCI-E x16 (Gen3 X16 Link), PCI-E x16 (Gen3 X16 Link), PCI-E x16 (Gen3 X16 Link), PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied, PCI-E x16 (Gen3 X8 Link), MIO supported, Additional Slot 1 : PIKE Slot
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Storage Controller Details
SATA Controller, Intel C602-A AHCI, 4 x SATA2 3Gb/s ports, 2 x SATA3 6Gb/s ports , Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only), (Support Software RAID 0, 1, 5, 10 ), LSI MegaRAID (For Linux/Windows), (Support Software RAID 0, 1
On-Board Video Controller
ASPEED AST2300
Shared Video Memory
16 MB
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, CPU Fan Connector, PS/2, PS/2 Keyboard, PS/2 Mouse, TPM Header, USB
Connectors/Ports Details
On Board I/O Connector, 1 x TPM header, 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector), 1 x Management Connector , Onboard socket for management card, 2 x USB pin header , Up to 4 Devices, 1 x Int
